| Return Shipping Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | motogadget |
| Type | Speedometer Gauge |
| Features | Illuminated (Backlit) |
| Display Type | Analogue & Digital |
| Country/Region Of Manufacture | Germany |
| Unit Of Measure | km/h |
| MPN | 5001010 |

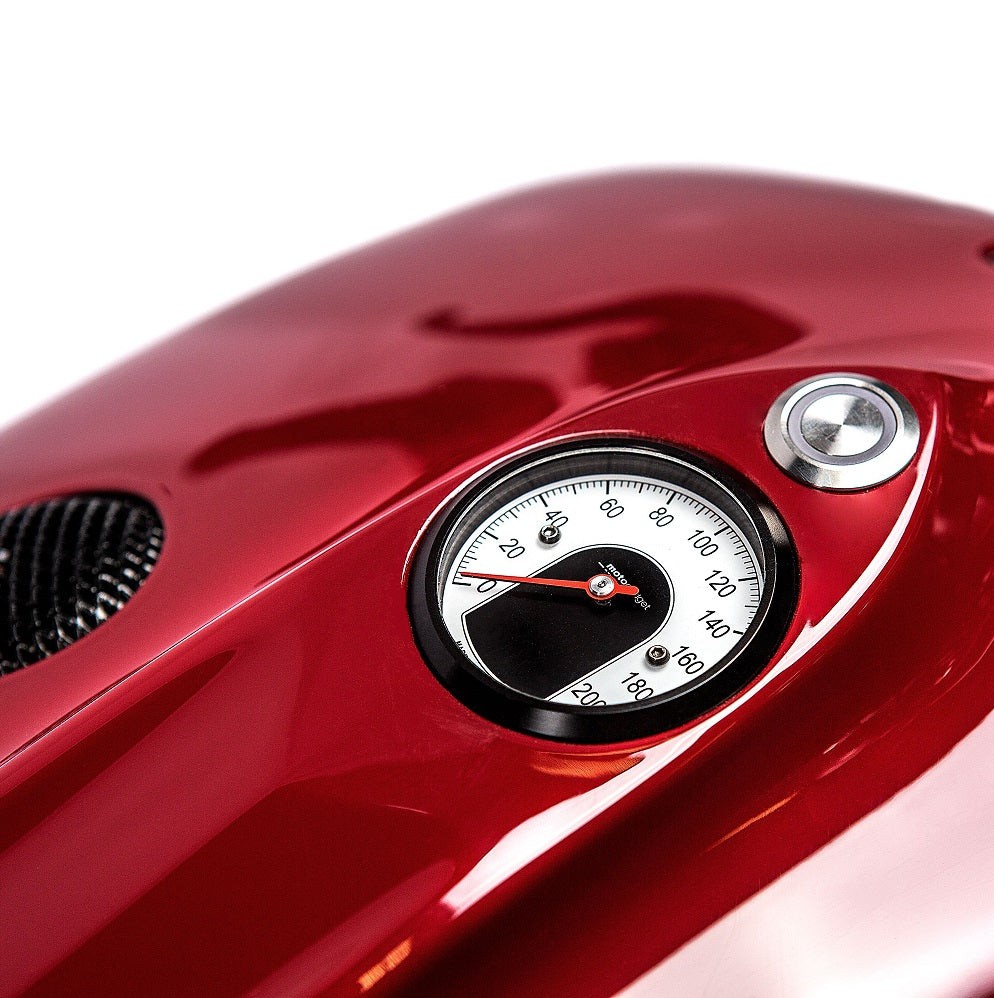

Motogadget Motoscope Tiny Speedo, 49mm Black Bezel - Cafe Racer, Custom Modern Motor Cycle Company (est. 2009) COMBINED POSTAGE! EACH ADDITIONAL ITEM SHIPS FOR AN EXTRA $4!! SEE BOTTOM OF PAGE FOR DETAILS. Being an Australian business, your purchase is guaranteed for 12 months. Be wary of sellers that indicate their location as Australia but are actually based in China (check their member page). PayPal will only protect your purchase for 3 months if their product fails! The motoscope tiny is a very compact, analogue 49 mm speedometer. Speed is digitally measured and precisely displayed via stepping motor and indicator. The installation diameter of 49 mm and the installation depth of only 24 mm provide various installation options. Sophisticated technology provides for a classic look without compromise. The dial completely does without display sections or LCD and has a convincing classical look. The ideal solution for purists and minimalists.The high quality aluminium casing is turned from solid metal and its surface is anodized black. The bezel is also available in 'anodized black' or 'mirror polished'. The casing is 100% water-tight and resistant to vibrations.The analogue dial in contrasting black and white is indirectly illuminated by white LEDs. The innovative LED display is hidden behind the black part of the dial and only visible through the dial while operating, not when switched off. The LED luminosity is automatically adjusted to achieve optimal readability in dark, sunlight and dawn conditions. If the speed exceeds the 200 km/h on the analogue scale, it is automatically displayed in the LED display. The maximum speed is recorded as well. The 4 indicator lights (blue, red and 2 x green) are also integrated into the dial. These lights are only visible when operated, too.OperationYou can toggle between the different informations on the LED display by operating the supplied menu push-button or e.g. the headlight flasher push-button on the handle bar. Default value on the display is the time. If needed, a short actuation of the push-button will display the values of total distance, day trip, on-board voltage etc. All functions are easy to operate with the push-button, e.g. day trip, reset or the like. Default settings or recorded values are of course stored even with the power supply switched off.InstallationThe motoscope tiny is easy to install with the two M3 threaded holes on the back side. There are various motogadget brackets available for installation. Refer to 'Brackets'.Connection and SensorsThe detailed installation and operating instructions (refer to 'Downloads') help with the connection of instrument even for users without any previous experience in handling the vehicle's electrical system. The supplied speedometer sensor in stainless steel is very small (M5/23 mm) and therefore easy to hide. The sensor can be easily installed on front or rear wheel with the connector cable (1.5 m long). This allows for the easy conversion of an originally mechanical speedometer drive on a motorbike. The motoscope tiny is compatible with various original speedometer sensors (dry reed contact and proximity sensors) of the motorbike manufacturers. In this case, the terminals have to be connected only and the mechanical sensor installation will be completely obsolete. An intelligent 'Teach Function' allows for the easy calibration of the speedometer - even on vehicles with transmission sensors, e.g. Harley Davidson.Specifications and FeaturesMounting diameter: 49 mmWeight: approx. 96 gMounting: 2 x M3 threaded holePower consumption, operating: approx. 200 mA (load dependent)Operating voltage: 9 V - 15 VOperating temperature: -20°... +80°CSpeedometer, analogue (needle): 0 – 200 km/h or mi/hSpeedometer, numeric (LED display): 200 – 999 km/h or mi/hMax. speed: 0 – 999 km/h or mi/hOn-board voltage: 9 – 15 VClock: 00:00 – 23:59Trip meter: 0 – 999.9 km or miTotal distance (adjustable): 99999 km or mi max.Indicator lights: turn signal, high beam, neutral, hazard light Package ContentsInstrument with approx. 75 cm connector cableMini push-button2 removable fuses9 cable end connectorsSpeedometer sensor (M5 x 0,5 fine-pitch thread, stainless steel, IP 68) with 150 cm connector cable2 powerful neodymium mini magnets2 mounting screws M3 with washer2 diodes for pairing of turn signalsDetailed installation and operating instructions IMPORTANT!!! PLEASE PAY CAREFUL ATTENTION TO THE FOLLOWING: DO NOT MENTION THE NAME OF YOUR CITY ANYWHERE IN YOUR ADDRESS. WE NEED YOUR SUBURB NAME, NOT YOUR CITY NAME. IF WHAT IS ENTERED IN "CITY" BOX AND "POST CODE" BOX DO NOT MATCH AUSTRALIA POST'S DATABASE EXACTLY, YOUR ORDER WILL FAIL ADDRESS CHECKS AND SHIPMENT MAY BE DELAYED BY 1 BUSINESS DAY. ENSURE YOU SPELL YOUR SUBURB NAME CORRECTLY. WRITE YOUR SUBURB NAME EXACTLY AS IT IS WRITTEN IN AUSTRALIA POST'S DATABASE FOR YOUR POST CODE. IF IN DOUBT, CHECK AUSTRALIA POST'S POST CODE FINDER TOOL ONLINE. OUR SYSTEM WILL NOT ACCEPT MORE THAN 30 CHARACTERS PER ADDRESS LINE. DO NOT WRITE YOUR SUBURB NAME ANYWHERE OTHER THAN THE "CITY" BOX. IF YOU WRITE IT ON 1 OF THE 2 ADDRESS LINES, YOUR ORDER WILL PROBABLY FAIL TO IMPORT INTO OUR SYSTEM AND MAY SHIP 1 DAY LATE. - We offer combined postage! Add a different part from our range to your cart, and just $4 will be added to the total shipping within Australia (excludes tyres). Combined postage is calculated for you automatically. Just add the items you’d like to your cart by clicking the ADD TO CART button. The combined shipping charge will be displayed below the sub total in your shopping cart. We can not combine shipping if you click BUY IT NOW. The ADD TO CART button may not be visible on some mobile devices. In this instance you will need to click the CLASSIC SITE button located at the bottom of the page. Alternatively you can place your combined shipping order via the Ebay app. DELIVERIES TO BUSINESSES MUST HAVE THE BUSINESS NAME IN THE ADDRESS. WITHOUT THIS, YOUR SHIPMENT MAY BE RETURNED TO US IN WHICH CASE WE WILL NEED TO CHARGE YOU FOR THE SHIPPING AGAIN. IF YOU HAVE A SPECIAL REQUEST PLEASE ASK FIRST AND AWAIT OUR REPLY BEFORE PLACING YOUR ORDER. WE AIM TO SHIP OUT ORDERS AS QUICKLY AS POSSIBLE SO IN MOST CASES, YOUR ORDER WILL HAVE ALREADY SHIPPED BY THE TIME WE SEE YOUR MESSAGE. WE CAN NOT CANCEL OR AMEND ORDERS AFTER THEY HAVE BEEN PLACED, SO PLEASE ENSURE YOU ARE ORDERING THE CORRECT ITEM. ALL ELECTRICAL ITEMS ARE 12 VOLT UNLESS OTHERWISE SPECIFIED IN THE ITEM DESCRIPTION. DELIVERIES TO WA: TRANSIT TIME IS 5 TO 8 BUSINESS DAYS. All our products come with a 12 month warranty. Should your item be faulty, we will replace it for you at our expense. ANY ELECTRICAL ITEM NOT INSTALLED BY A QUALIFIED TECHNICIAN WILL VOID THIS WARRANTY. Orders received by 2pm (AEST) ship same day (excludes orders with address errors such as not entering suburb name in the "city" box). Orders received after 2pm ship the following business day. Please ensure this item is compatible with your bike. We will not take responsibility for customers who purchase parts that turn out not to be compatible with their bike. Be sure to provide us with a complete delivery address and that you are able to receive the delivery or collect from your post office if carded. Shortly after shipping the courier company will email you your tracking number... follow the tracking carefully. If you have not received delivery or a card 7 business days following shipment, please contact the courier immediately. In the event your item is undeliverable and is returned to us we incur considerable charges and as such will have to charge you a $20 fee. If you can not find your shipping confirmation email, please check your junk mail folder. INTERNATIONAL BUYERS: before making your purchase, we advise you check with your customs authority as to whether they will be charging you import duty & tax. Any duties & taxes that may be incurred are your responsibility. - Modern Motor Cycle Company - Established 2009
